Aircraft

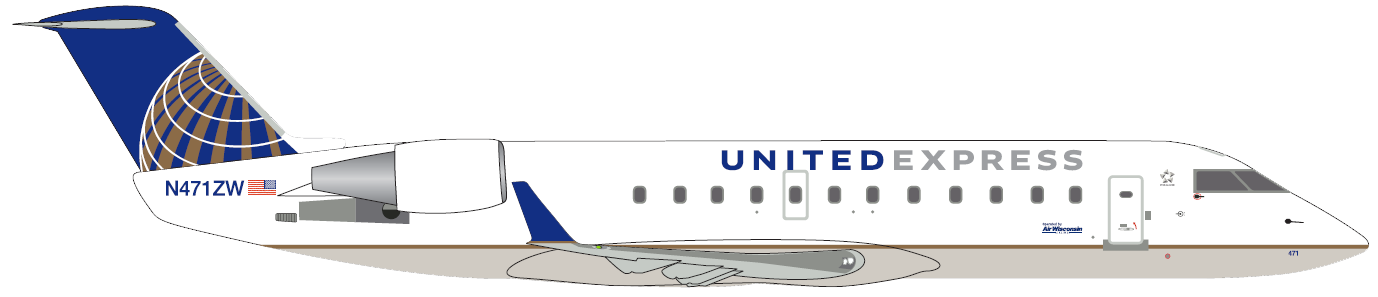

Bombardier CRJ-200 CRJ200 graphic

Description

The Bombardier CRJ200 was designed to provide superior performance and operating efficiencies in the fast-growing regional airline industry. Against the closest competition, it flies faster and farther while burning less fuel and having lower operating costs. With over 1,000 units in commercial service, it has become the most successful regional airliner program the world has ever known.

1585 nm

Max. Flying
Range

50

Passengers

41,000 ft

Max. Operating
Range

534 mph

Max. Cruise
Speed

General

  • Flight Crew2
  • Cabin Crew1
  • Passengers50

Engines

  • Number

    2 General Electric CF34-3B1 turbofans

  • Thrust

    8,729 pounds (38.84 kN) thrust at takeoff 9,220 pounds (41.0 kN) thrust APR

Avionics

  • Collins Pro Line 4 six-tube EFIS/EICAS

  • Dual attitude heading reference systems (AHRS)

  • Traffic alert & collision avoidance system (TCASII)

  • Collins digital weather radar

Performances

Range
Maximum range at LRC
CRJ 200 FAA 121 (50 pax) 1,700 NM 1,956 SM 3,148 km

Speed Mach kts mph km/h
High cruise speed 0.81 464 534 860
Normal cruise speed 0.74 424 488 785

Airfield Performance
FAR takeoff field length
(SL, ISA) at MTOW
6,290 ft 1,918 m
FAR landing field length
(SL) at MLW
4,850 ft 1,479 m

Ceiling
Maximum operating altitude 41,000 ft 12,496 m

Noise Level
Takeoff 77.7
Approach 92.1
Sideline 82.5
Margin to Stage IV 18.7

Dimensions

External
Length overall 87 ft 10 in 26.77 m
Wingspan 69 ft 7 in 21.21 m
Height overall 20 ft 5 in 6.22 m
Turning Circle 75 ft 22.86 m

Internal
Cabin length (Flt comp bulkhead
to aft cabin bulkhead)
40 ft 6 in 12.38 m
Cabin maximum width (centreline) 8 ft 3 in 2.53 m
Cabin width (floor level) 7 ft 2 in 2.18 m
Maximum height 6 ft 1 in 1.85 m
Baggage volume (with carry-on) 485 ft3 13.8 m3

Weights
Maximum ramp weight 53,250 lb 24,154 kg
Maximum takeoff weight 53,000 lb 24,041 kg
Maximum landing weight 47,000 lb 21,319 kg
Maximum zero fuel weight 44,000 lb 19,958 kg
Operating weight empty 30,900 lb 14,016 kg
Maximum fuel load 14,305 lb 6,489 kg
Maximum payload 13,100 lb 5,942 kg

Interior layout

interior layout

Summary

Our aircraft have four emergency exits, one main entrance, one lavatory, 13 seat rows and 50 passenger seats total.
