Bombardier CRJ-200
Description
The Bombardier CRJ200 was designed to provide superior performance and operating efficiencies in the fast-growing regional airline industry. Against the closest competition, it flies faster and farther while burning less fuel and having lower operating costs. With over 1,000 units in commercial service, it has become the most successful regional airliner program the world has ever known.
Max. Flying
Range
Passengers
Max. Operating
Range
Max. Cruise
Speed
General
- Flight Crew2
- Cabin Crew1
- Passengers50
Engines
-
Number
2 General Electric CF34-3B1 turbofans
-
Thrust
8,729 pounds (38.84 kN) thrust at takeoff 9,220 pounds (41.0 kN) thrust APR
Avionics
Collins Pro Line 4 six-tube EFIS/EICAS
Dual attitude heading reference systems (AHRS)
Traffic alert & collision avoidance system (TCASII)
Collins digital weather radar
Performances
| Range | |||
| Maximum range at LRC | |||
| CRJ 200 FAA 121 (50 pax) | 1,700 NM | 1,956 SM | 3,148 km |
| Speed | Mach | kts | mph | km/h |
| High cruise speed | 0.81 | 464 | 534 | 860 |
| Normal cruise speed | 0.74 | 424 | 488 | 785 |
| Airfield Performance | ||
| FAR takeoff field length (SL, ISA) at MTOW |
6,290 ft | 1,918 m |
| FAR landing field length (SL) at MLW |
4,850 ft | 1,479 m |
| Ceiling | ||
| Maximum operating altitude | 41,000 ft | 12,496 m |
| Noise Level | ||
| Takeoff | 77.7 | |
| Approach | 92.1 | |
| Sideline | 82.5 | |
| Margin to Stage IV | 18.7 |
Dimensions
| External | ||
| Length overall | 87 ft 10 in | 26.77 m |
| Wingspan | 69 ft 7 in | 21.21 m |
| Height overall | 20 ft 5 in | 6.22 m |
| Turning Circle | 75 ft | 22.86 m |
| Internal | ||
| Cabin length (Flt comp bulkhead to aft cabin bulkhead) |
40 ft 6 in | 12.38 m |
| Cabin maximum width (centreline) | 8 ft 3 in | 2.53 m |
| Cabin width (floor level) | 7 ft 2 in | 2.18 m |
| Maximum height | 6 ft 1 in | 1.85 m |
| Baggage volume (with carry-on) | 485 ft3 | 13.8 m3 |
| Weights | ||
| Maximum ramp weight | 53,250 lb | 24,154 kg |
| Maximum takeoff weight | 53,000 lb | 24,041 kg |
| Maximum landing weight | 47,000 lb | 21,319 kg |
| Maximum zero fuel weight | 44,000 lb | 19,958 kg |
| Operating weight empty | 30,900 lb | 14,016 kg |
| Maximum fuel load | 14,305 lb | 6,489 kg |
| Maximum payload | 13,100 lb | 5,942 kg |

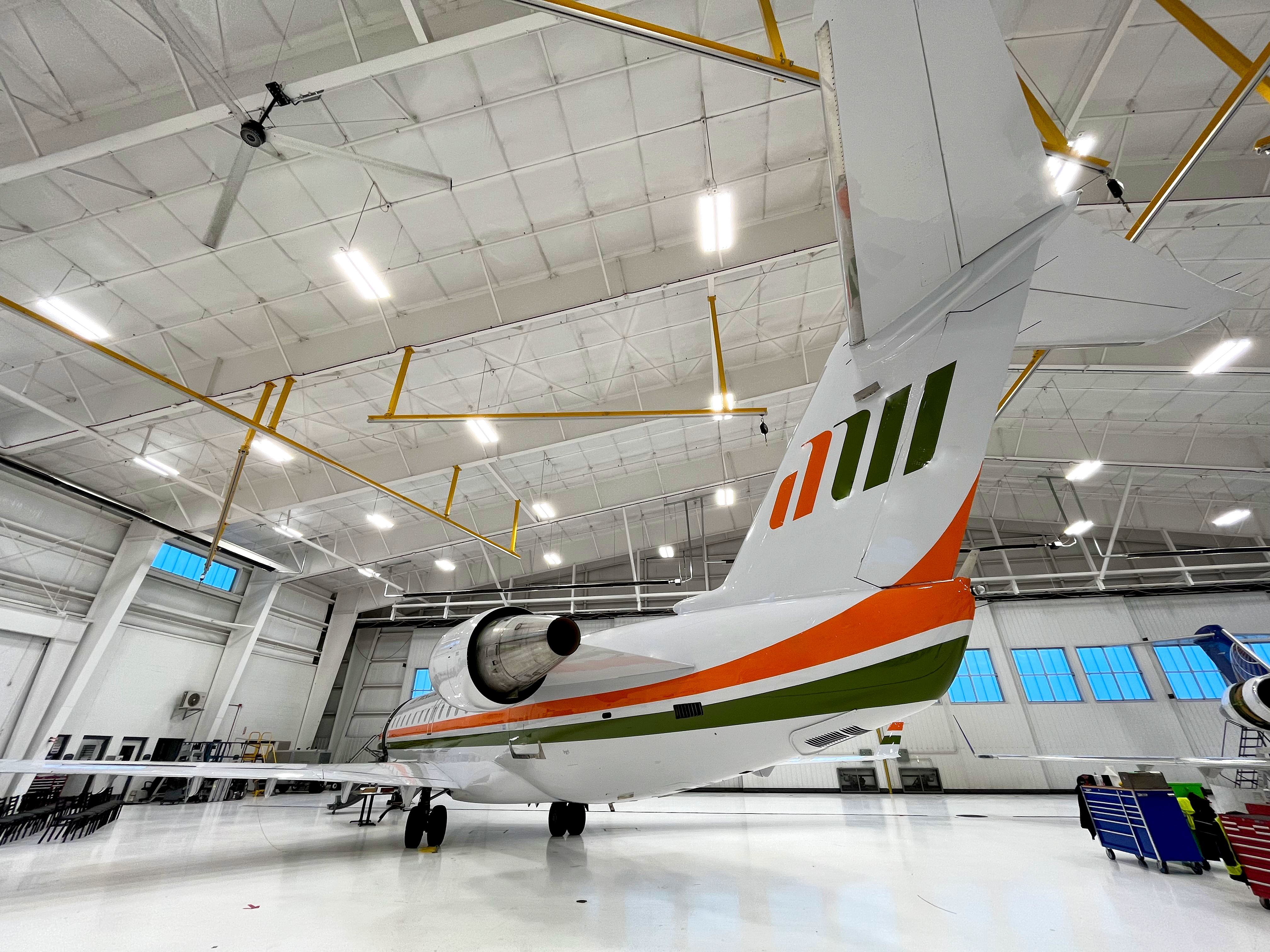

CRJ-200 Photo Gallery
Interior layout
Summary
Our aircraft have four emergency exits, one main entrance, one lavatory, 13 seat rows and 50 passenger seats total.
